ROLLFORMING LINES LPP SERIES
| Material thickness, mm | 0,6 - 1,2 |
| Material width, mm | 700 – 1250 |
| Profile length, mm | 400 – 3000 |
| Throughput, m/min | 6 - 8 (with one forming stamp) |
| Throughput, m/min | 10 - 12 (with two forming stamps) |
| Installed capacity | 60 - 75 |
The line consists of:
- decoiler;
- roll feeding device;
- hydraulic press with one (two or more) forming stamp;
- rollforming mill;
- cutting scissors or bending-and cutting unit;
- hydraulic equipment;
- pneumatic equipment;
- electrical equipment;
- control system.

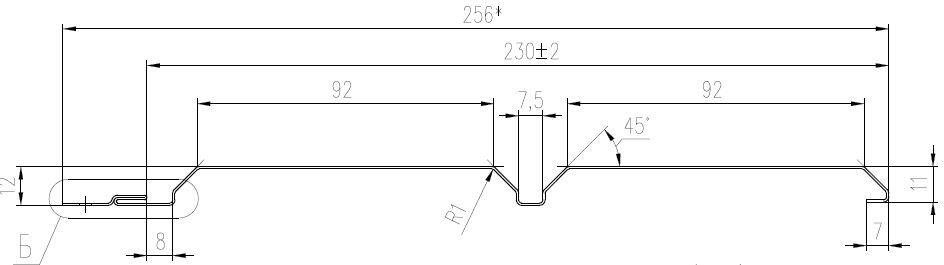

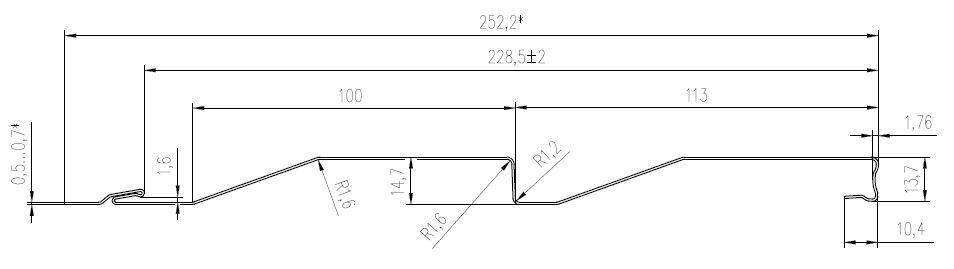

Samples of profiles
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
.JPG)
