Lines for tile production
Rollforming Line LPRF series is designed for the manufacture of metal tile "Monterrey", “Super Monterrey”, “Kaskad”, “Elit”, etc.
| Material thickness, mm | 0,4 - 0,5 |
| Material width, mm | 1250 |
| Coating | zinc, polymer |
| Profile length, mm | 2100…8100 |
| Throughput, m/min | 8-10 with one forming stamp |
| Throughput, m/min | 6-18 with two forming stamps |
| Installed capacity, kwt | 39 (40) |

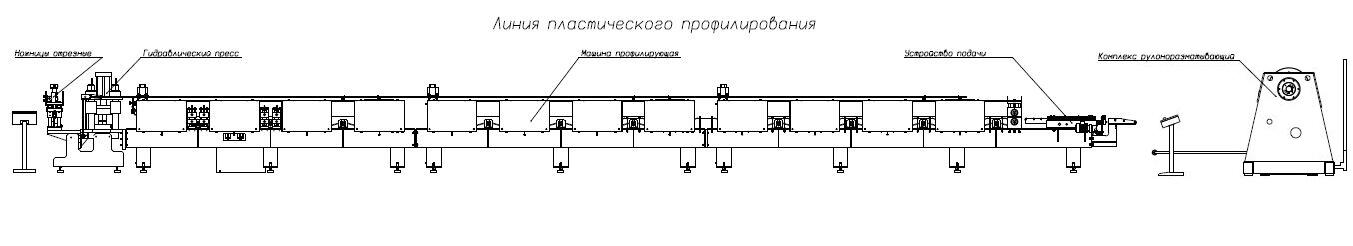

The line consists of:

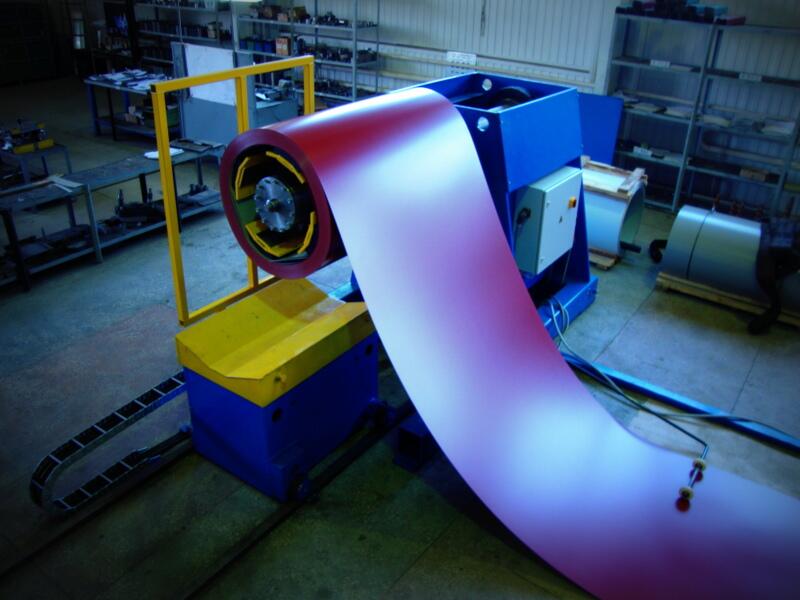

- decoiler;
- loading trolley;

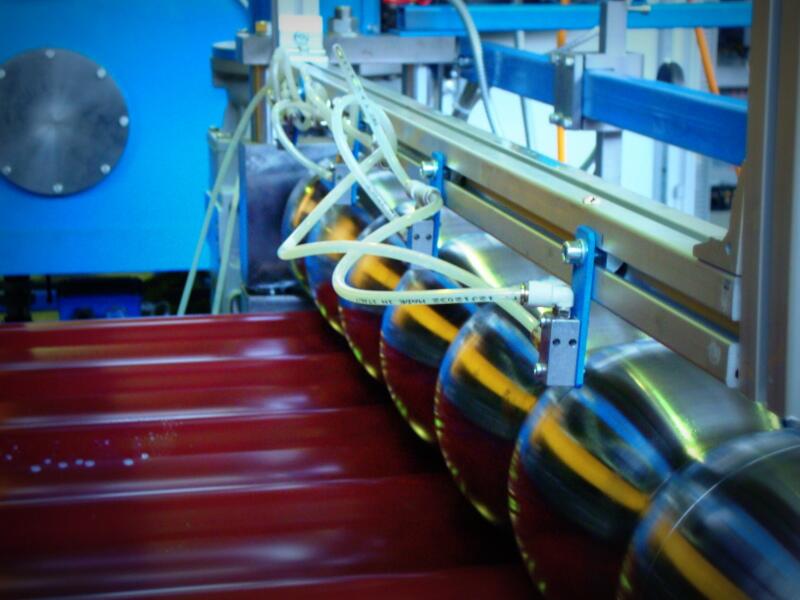

- lubricating system;

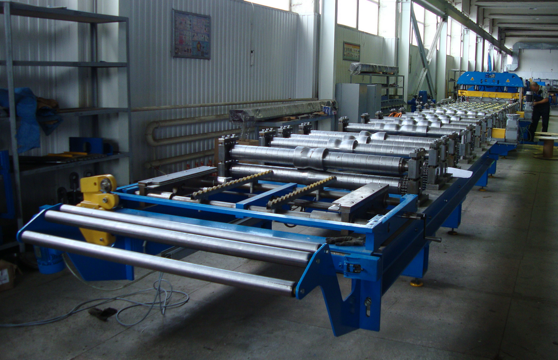

- rollforming mill;

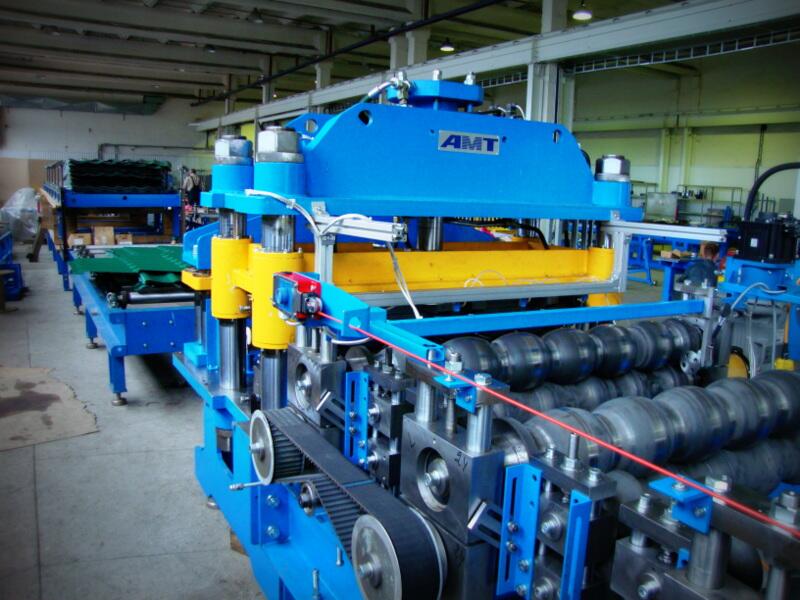

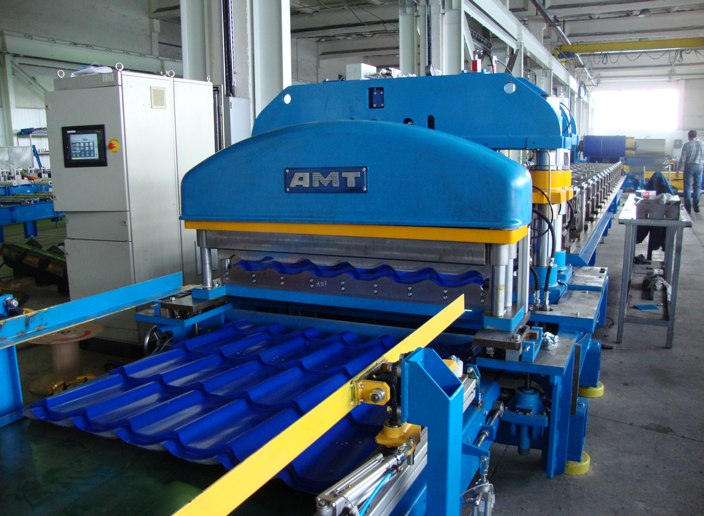

- hydraulic press with one (two) forming stamp;
- guillotine shears;
- conveyor stacker;
- packaging machine;
- rack and pinion conveyor;
- hydraulic equipment;
- pneumatic equipment;
- electrical equipment;
- control system.
